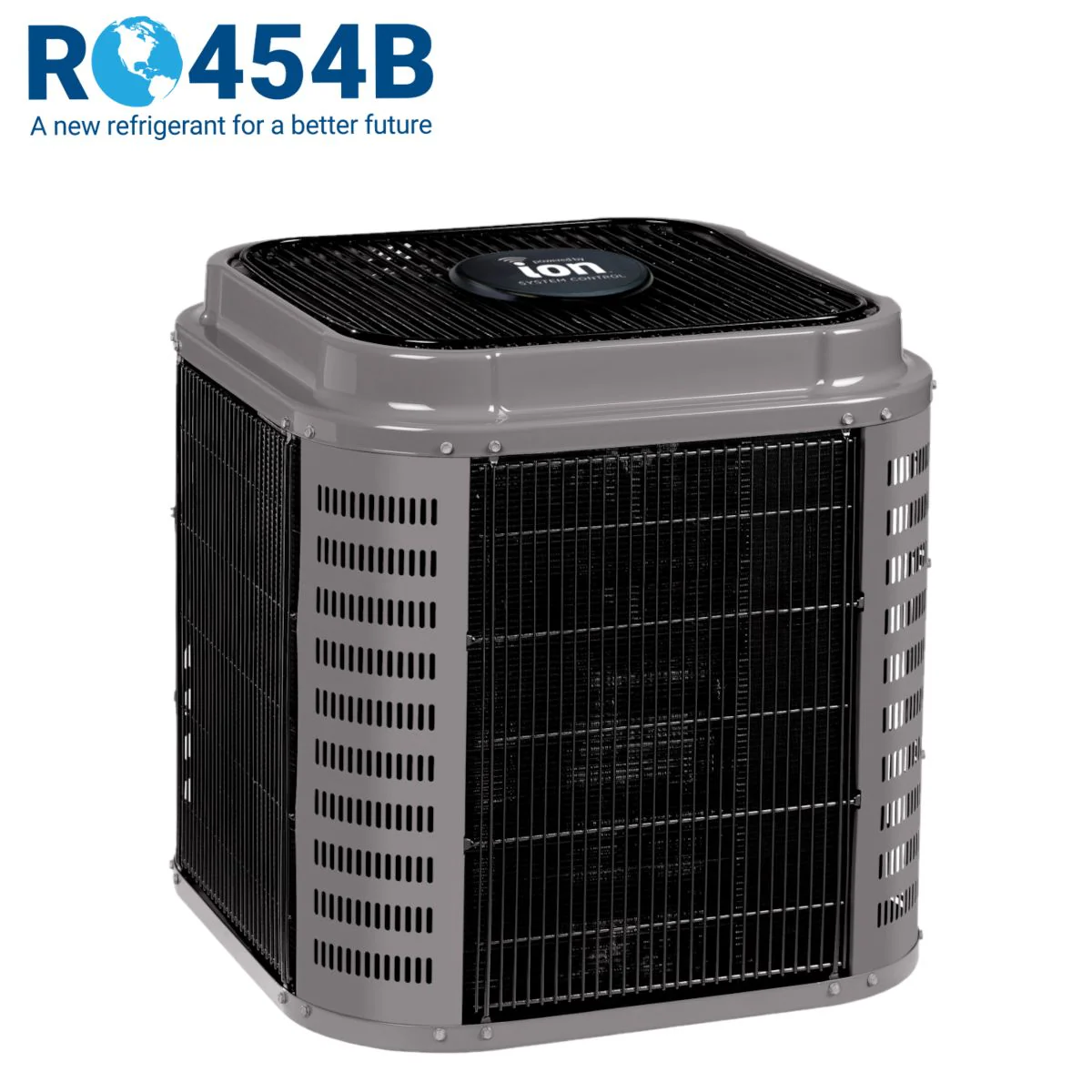

Tempstar T5A6S30AKAWA 2.5 Ton 14.3-16.5 SEER2 Air Conditioner Condensing Unit, 208-230V/1-Phase/60Hz, R-454B
The Tempstar T5A6S30AKAWA is a 2.5-ton air conditioner condensing unit ā the outdoor half of a split system designed to pair with a matched indoor coil and air handler or furnace. It is rated at 14.3-16.5 SEER2 on R-454B refrigerant.
Key specifications include a scroll compressor, 3/4" suction and 3/8" liquid line connections, 208-230V 1-Phase 60Hz power.
Match the unit to an AHRI-certified indoor coil for rated performance. Confirm line-set sizing, electrical service, and refrigerant before ordering.
Specifications
| Nominal Capacity (Tons) | 2.5 |
| SEER2 | 14.3-16.5 |
| EER2 | 11.2, 14.5 |
| System Type | Straight Cool |
| Refrigerant | R-454B |
| Voltage | 208-230 VAC |
| Phase | Single |
| Compressor | Scroll |
| Suction Line OD | 3/4" |
| Liquid Line OD | 3/8" |
| Condenser FPI | 25 |
| ENERGY STAR | Yes |
| Cabinet Color | Gray |
| Certifications | AHRI, ANSI/ASHRAE, NEC, ISO 9001 |
Why Tempstar
Tempstar is built by International Comfort Products, a Carrier company. On residential installations, Tempstar covers these units with a 10-year limited parts warranty when registered within 90 days (5-year parts without registration), plus a No Hassle Replacement limited warranty on qualifying models. AHRI, ANSI/ASHRAE, NEC, ISO 9001 listed.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Tempstar T5A6S30AKAWA 2.5 Ton 14.3-16.5 SEER2 Air Conditioner Condensing Unit, 208-230V/1-Phase/60Hz, R-454B
Tempstar T5A6S30AKAWA 2.5 Ton 14.3-16.5 SEER2 Air Conditioner Condensing Unit, 208-230V/1-Phase/60Hz, R-454B
The Tempstar T5A6S30AKAWA is a 2.5-ton air conditioner condensing unit ā the outdoor half of a split system designed to pair with a matched indoor coil and air handler or furnace. It is rated at 14.3-16.5 SEER2 on R-454B refrigerant.
Key specifications include a scroll compressor, 3/4" suction and 3/8" liquid line connections, 208-230V 1-Phase 60Hz power.
Match the unit to an AHRI-certified indoor coil for rated performance. Confirm line-set sizing, electrical service, and refrigerant before ordering.
Specifications
| Nominal Capacity (Tons) | 2.5 |
| SEER2 | 14.3-16.5 |
| EER2 | 11.2, 14.5 |
| System Type | Straight Cool |
| Refrigerant | R-454B |
| Voltage | 208-230 VAC |
| Phase | Single |
| Compressor | Scroll |
| Suction Line OD | 3/4" |
| Liquid Line OD | 3/8" |
| Condenser FPI | 25 |
| ENERGY STAR | Yes |
| Cabinet Color | Gray |
| Certifications | AHRI, ANSI/ASHRAE, NEC, ISO 9001 |
Why Tempstar
Tempstar is built by International Comfort Products, a Carrier company. On residential installations, Tempstar covers these units with a 10-year limited parts warranty when registered within 90 days (5-year parts without registration), plus a No Hassle Replacement limited warranty on qualifying models. AHRI, ANSI/ASHRAE, NEC, ISO 9001 listed.
