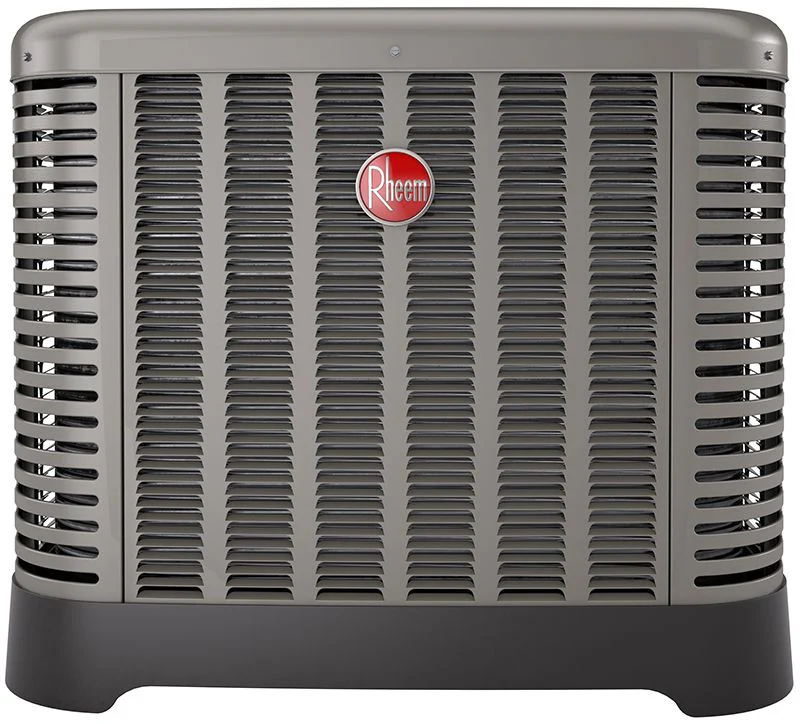

Rheem RP14AY60AJ2NA 5 Ton 14.3 SEER2 Heat Pump Condensing Unit, 208-230V/1-Phase/60Hz, R-454B
The Rheem RP14AY60AJ2NA is a 5-ton heat pump condensing unit ā the outdoor half of a split system designed to pair with a matched indoor coil and air handler or furnace. It is rated at 14.3 SEER2 on R-454B refrigerant.
Key specifications include a scroll compressor, 7/8" suction and 3/8" liquid line connections, 208-230V 1-Phase 60Hz power.
Match the unit to an AHRI-certified indoor coil for rated performance. Confirm line-set sizing, electrical service, and refrigerant before ordering.
Specifications
| Nominal Capacity (Tons) | 5 |
| SEER2 | 14.3 |
| EER2 | 9 |
| System Type | Heat Pump |
| Refrigerant | R-454B |
| Voltage | 208-230 VAC |
| Phase | Single |
| Compressor | Scroll |
| Suction Line OD | 7/8" |
| Liquid Line OD | 3/8" |
| Condenser FPI | 22 |
| ENERGY STAR | Yes |
| Cabinet Color | Gray |
| Certifications | UL Listed |
Why Rheem
Rheem covers residential condensing units and heat pumps with a 10-year conditional limited parts warranty when registered within 90 days and installed as an AHRI-matched system for the original owner (otherwise the standard parts period applies). UL Listed listed.
