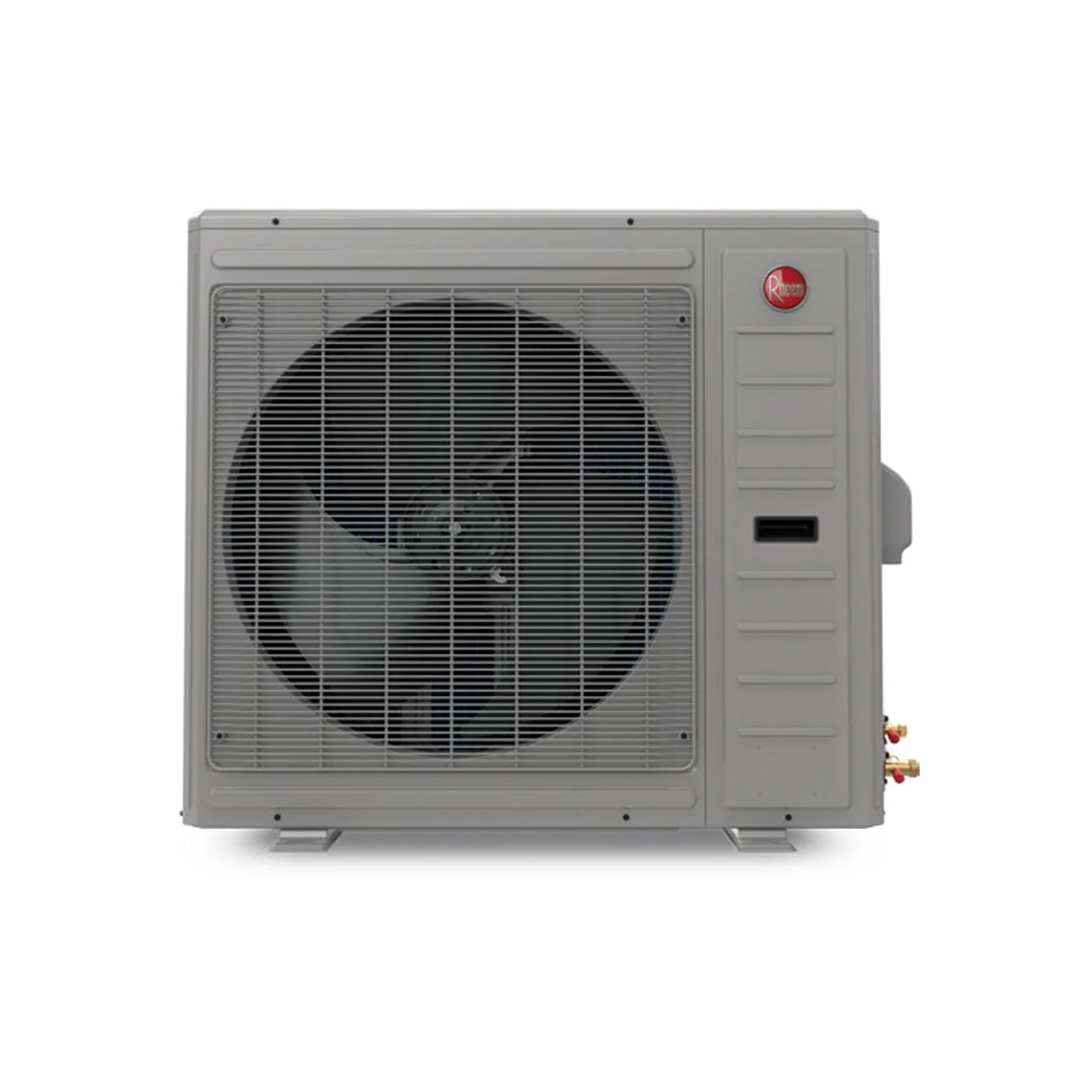

Rheem RD18AY24AJVCA 2 Ton 18 SEER2 Heat Pump Condensing Unit, 208-230V/1-Phase/60Hz, R-454B
The Rheem RD18AY24AJVCA is a 2-ton heat pump condensing unit ā the outdoor half of a split system designed to pair with a matched indoor coil and air handler or furnace. It is rated at 18 SEER2 on R-454B refrigerant.
Key specifications include a rotary compressor, 3/4" suction and 3/8" liquid line connections, 208-230V 1-Phase 60Hz power.
Match the unit to an AHRI-certified indoor coil for rated performance. Confirm line-set sizing, electrical service, and refrigerant before ordering.
Specifications
| Nominal Capacity (Tons) | 2 |
| SEER2 | 18 |
| EER2 | 11.7 |
| System Type | Heat Pump |
| Refrigerant | R-454B |
| Voltage | 208-230 VAC |
| Phase | Single |
| Compressor | Rotary |
| Suction Line OD | 3/4" |
| Liquid Line OD | 3/8" |
| Condenser FPI | 18 |
| ENERGY STAR | Yes |
| Cabinet Color | Gray |
| Certifications | ETL Listed |
Why Rheem
Rheem covers residential condensing units and heat pumps with a 10-year conditional limited parts warranty when registered within 90 days and installed as an AHRI-matched system for the original owner (otherwise the standard parts period applies). ETL Listed listed.
