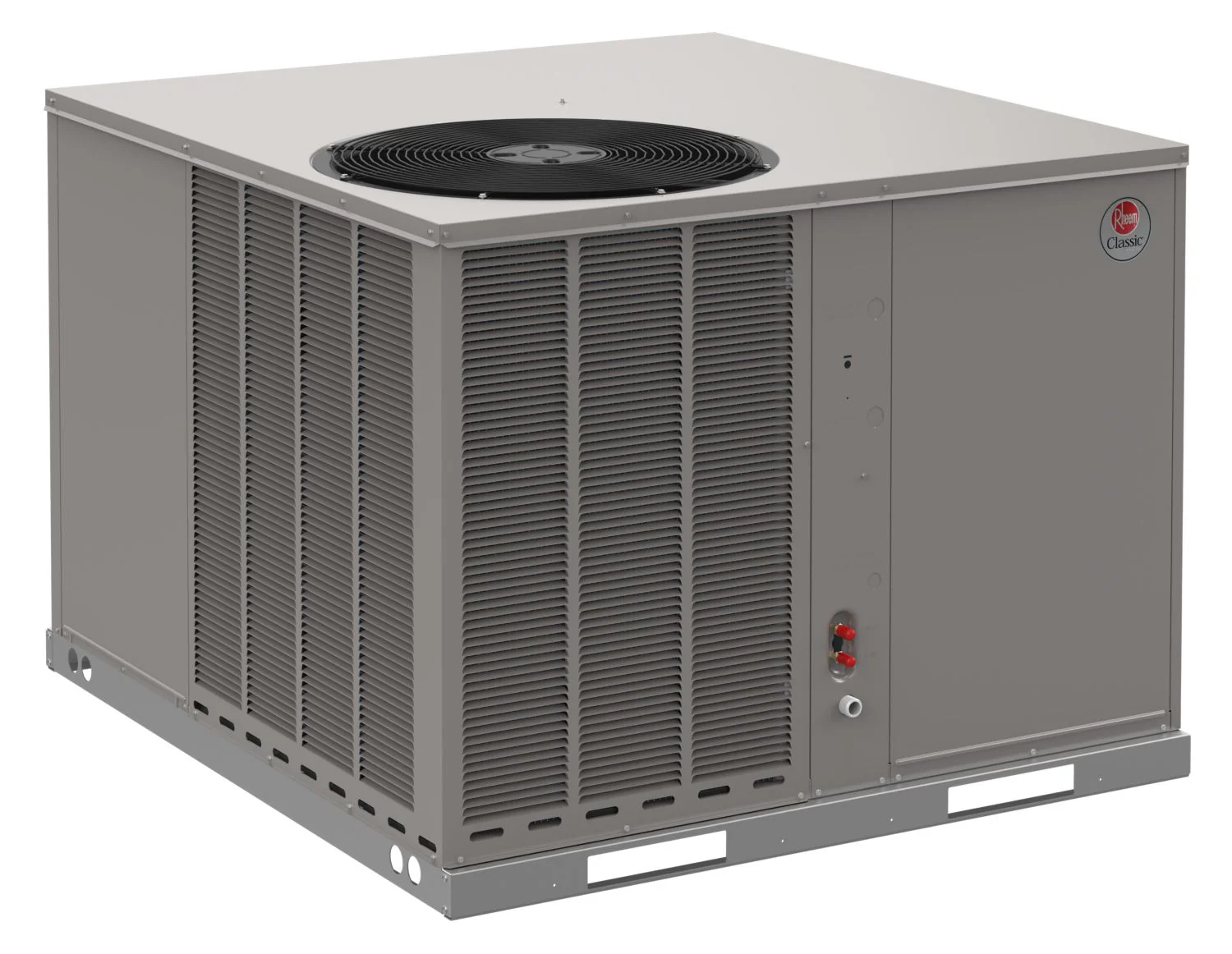

Rheem RACAYB036AJT000NA 3 Ton 13.4 SEER2 Packaged Air Conditioner, 208-230V/1-Phase/60Hz, R-454B
The Rheem RACAYB036AJT000NA is a 3-ton packaged air conditioner built for residential rooftop, slab, or ground-mount applications where a single self-contained cabinet is preferred over a split system. It is rated at 13.4 SEER2 and runs on R-454B refrigerant. Factory-charged and tested, it ships ready for a single-point power and duct connection.
Key specifications include a scroll compressor, 208-230V 1-Phase 60Hz power.
Confirm cooling load, electrical service, and duct static against the submittal and local code before ordering. Curbs, economizers, and controls are sold separately.
Specifications
| Nominal Capacity (Tons) | 3 |
| SEER2 | 13.4 |
| EER2 | 10.6 |
| System Type | Straight Cool |
| Refrigerant | R-454B |
| Voltage | 208-230 VAC |
| Phase | Single |
| Compressor | Scroll |
| Airflow Direction | Horizontal |
| ENERGY STAR | No |
| Cabinet Color | Gray |
Why Rheem
Rheem covers residential condensing units and heat pumps with a 10-year conditional limited parts warranty when registered within 90 days and installed as an AHRI-matched system for the original owner (otherwise the standard parts period applies).
