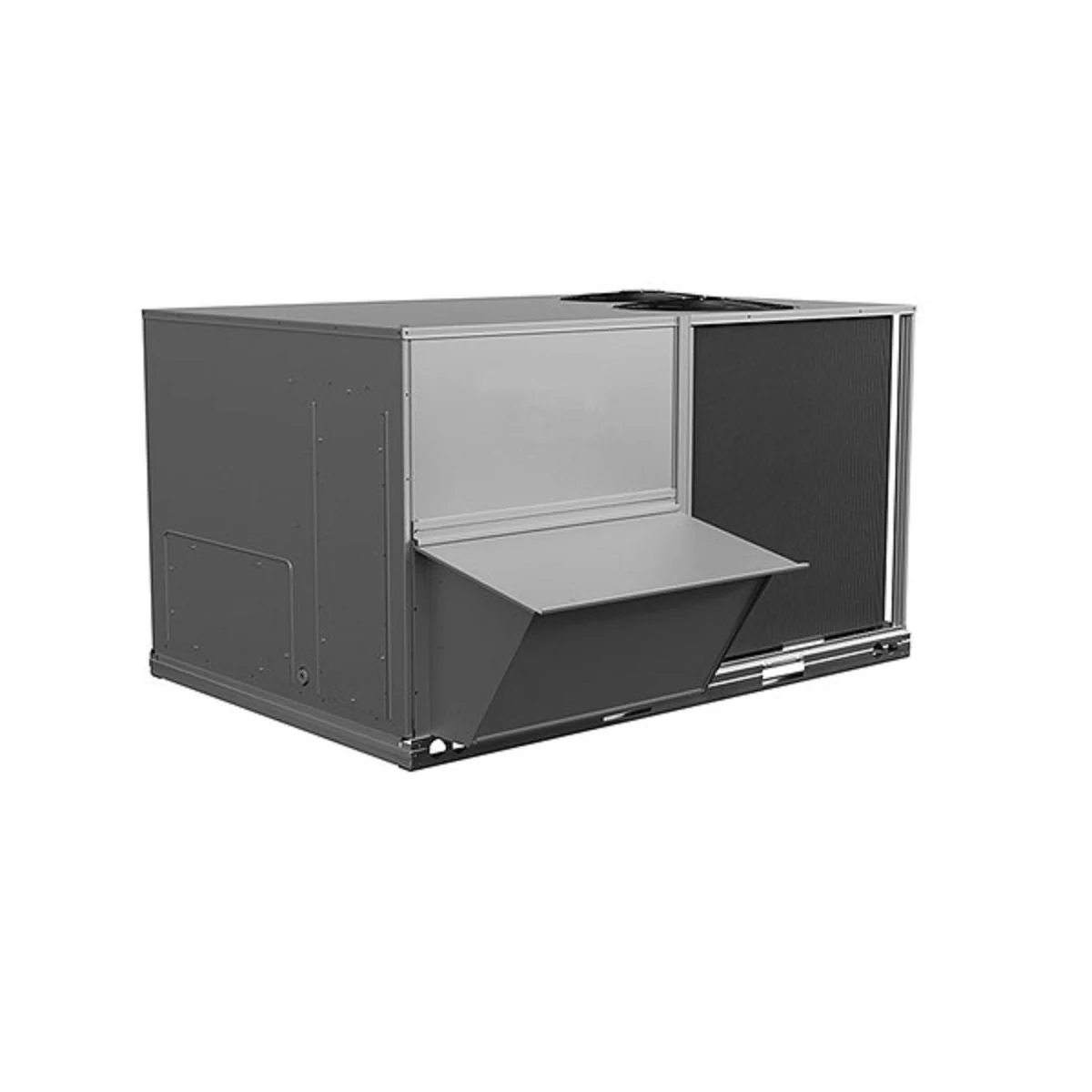

Heil RGF180LE4A0AAA 15 Ton 10.8 EER Packaged Gas/Electric Unit, 460V/3-Phase/60Hz, 240,000 BTU Heat, R-454B
The Heil RGF180LE4A0AAA is a 15-ton packaged gas/electric unit built for light-commercial rooftop and ground-mount applications where a single self-contained cabinet is preferred over a split system. It is rated at 10.8 EER and runs on R-454B refrigerant. Factory-charged and tested, it ships ready for a single-point power and duct connection.
Key specifications include integrated gas heat rated at 240,000 BTU input, a scroll compressor, 460V 3-Phase 60Hz power.
Confirm cooling load, electrical service, and duct static against the submittal and local code before ordering. Curbs, economizers, and controls are sold separately.
Specifications
| Nominal Capacity (Tons) | 15 |
| EER | 10.8 |
| System Type | Gas Electric |
| Refrigerant | R-454B |
| Voltage | 460 VAC |
| Phase | Three |
| Heating Input (BTU) | 192000, 240000 |
| Airflow (CFM) | 5250 |
| Compressor | Scroll |
| Airflow Direction | Convertible |
| ENERGY STAR | No |
| Cabinet Color | Gray |
| Certifications | UL Listed |
Why Heil
Heil is built by International Comfort Products, a Carrier company. These units carry a limited parts warranty; registration is required for maximum coverage and commercial-application terms are defined on the model's warranty certificate. UL Listed listed.
