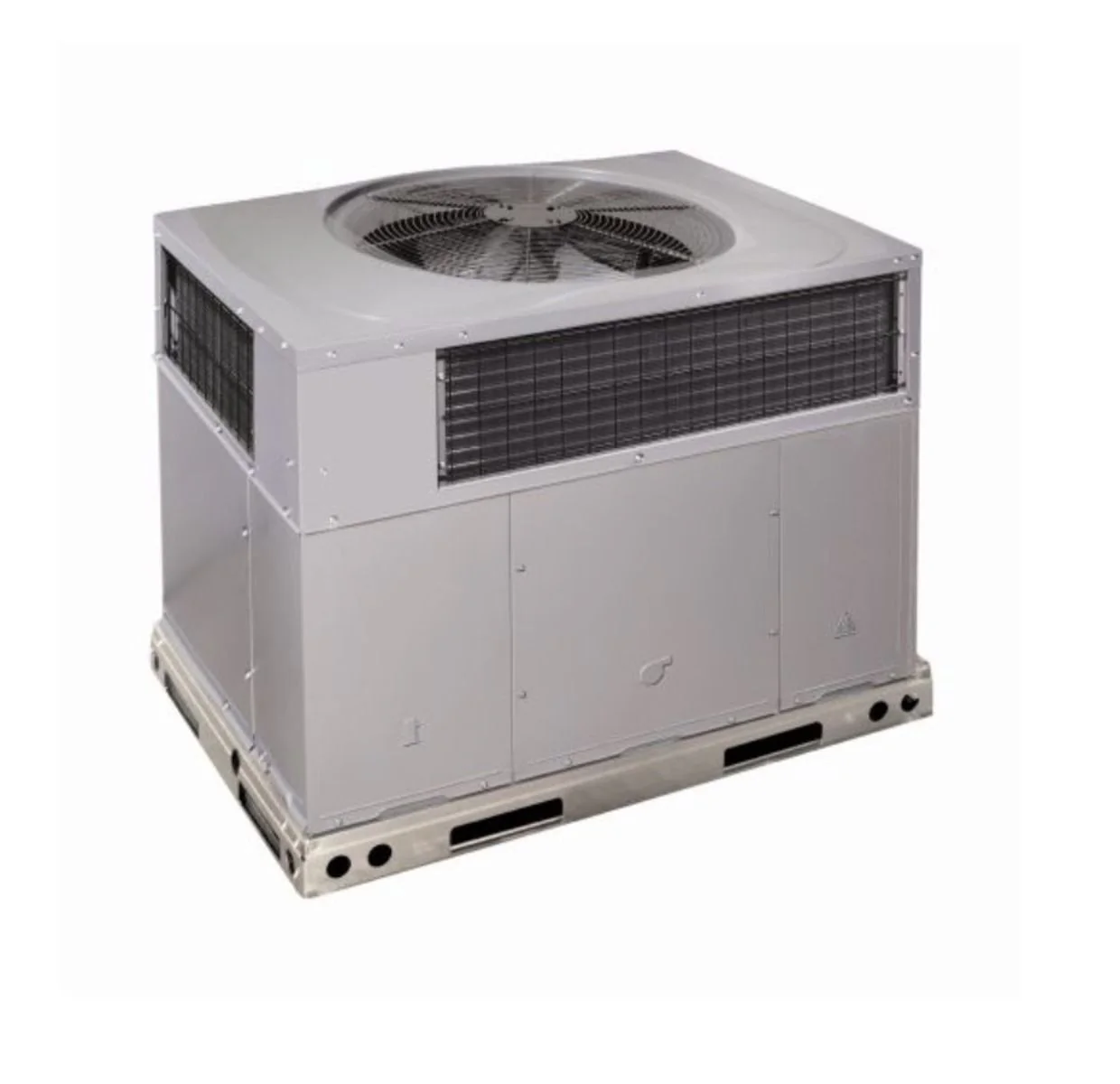

Heil PGB448130H001B 4 Ton 11.05 EER2 Packaged Gas/Electric Unit, 230V/3-Phase/60Hz, 130,000 BTU Heat, R-454B
The Heil PGB448130H001B is a 4-ton packaged gas/electric unit built for light-commercial rooftop and ground-mount applications where a single self-contained cabinet is preferred over a split system. It is rated at 11.05 EER2 and runs on R-454B refrigerant. Factory-charged and tested, it ships ready for a single-point power and duct connection.
Key specifications include integrated gas heat rated at 130,000 BTU input, a scroll compressor, 230V 3-Phase 60Hz power.
Confirm cooling load, electrical service, and duct static against the submittal and local code before ordering. Curbs, economizers, and controls are sold separately.
Specifications
| Nominal Capacity (Tons) | 4 |
| EER2 | 11.05 |
| System Type | Gas Electric |
| Refrigerant | R-454B |
| Voltage | 230 VAC |
| Phase | Three |
| Heating Input (BTU) | 130000 |
| Airflow (CFM) | 1600 |
| Compressor | Scroll |
| Airflow Direction | Downflow / Horizontal |
| ENERGY STAR | No |
| Cabinet Color | Gray |
Why Heil
Heil is built by International Comfort Products, a Carrier company. These units carry a limited parts warranty; registration is required for maximum coverage and commercial-application terms are defined on the model's warranty certificate.
