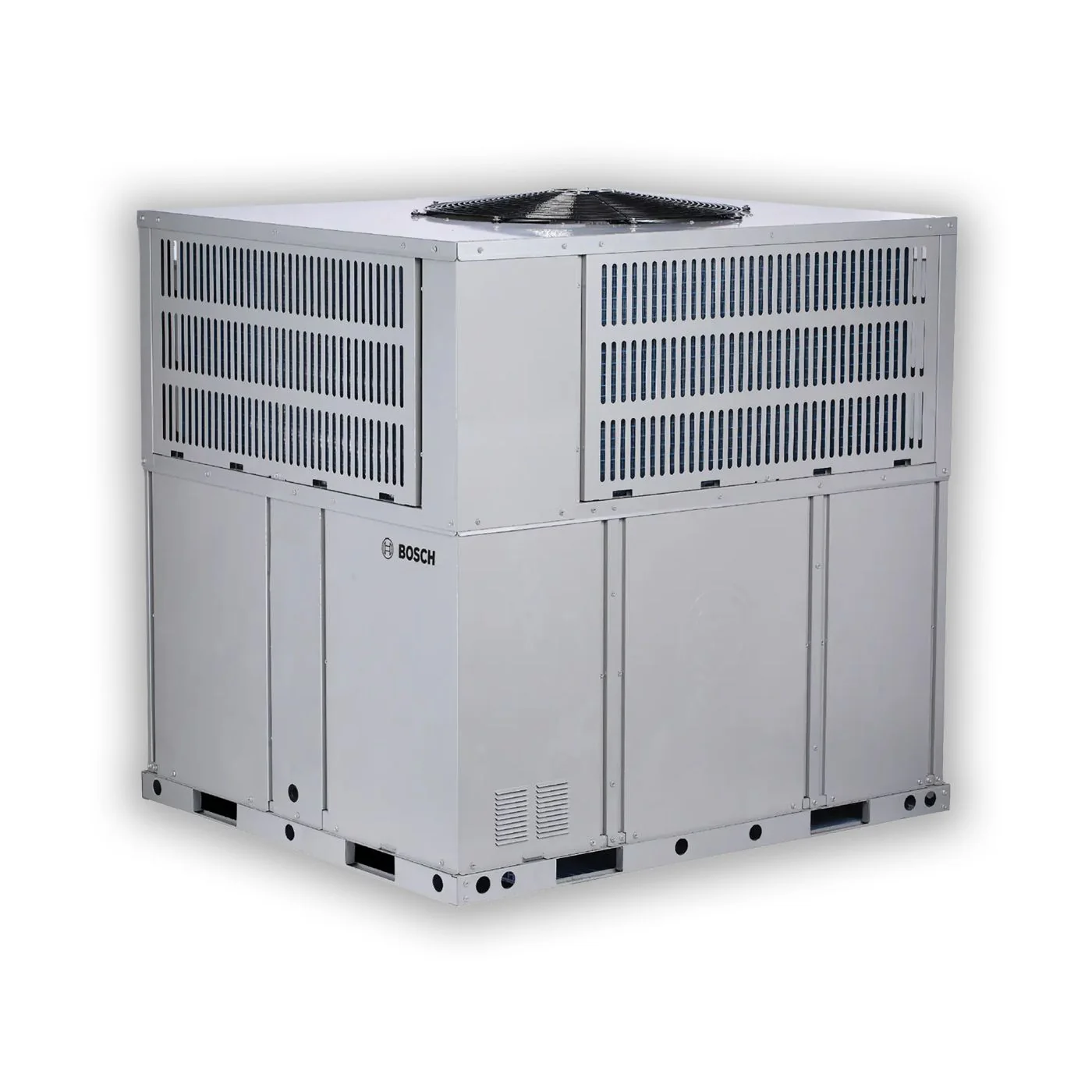

Bosch 8-733-965-450 5 Ton 19 SEER2 Packaged Heat Pump, 208-230V/1-Phase/60Hz, R-454B
The Bosch 8-733-965-450 is a 5-ton packaged heat pump built for residential rooftop, slab, or ground-mount applications where a single self-contained cabinet is preferred over a split system. It is rated at 19 SEER2 and runs on R-454B refrigerant. Factory-charged and tested, it ships ready for a single-point power and duct connection.
Key specifications include a rotary compressor, 208-230V 1-Phase 60Hz power.
Confirm cooling load, electrical service, and duct static against the submittal and local code before ordering. Curbs, economizers, and controls are sold separately.
Specifications
| Nominal Capacity (Tons) | 5 |
| SEER2 | 19 |
| EER2 | 11.2 |
| System Type | Heat Pump |
| Refrigerant | R-454B |
| Voltage | 208-230 VAC |
| Phase | Single |
| Airflow (CFM) | 1700 |
| Compressor | Rotary |
| Airflow Direction | Downflow / Horizontal |
| ENERGY STAR | Yes |
| Cabinet Color | Gray |
Why Bosch
Bosch HVAC equipment. See the model's warranty certificate for coverage terms.
