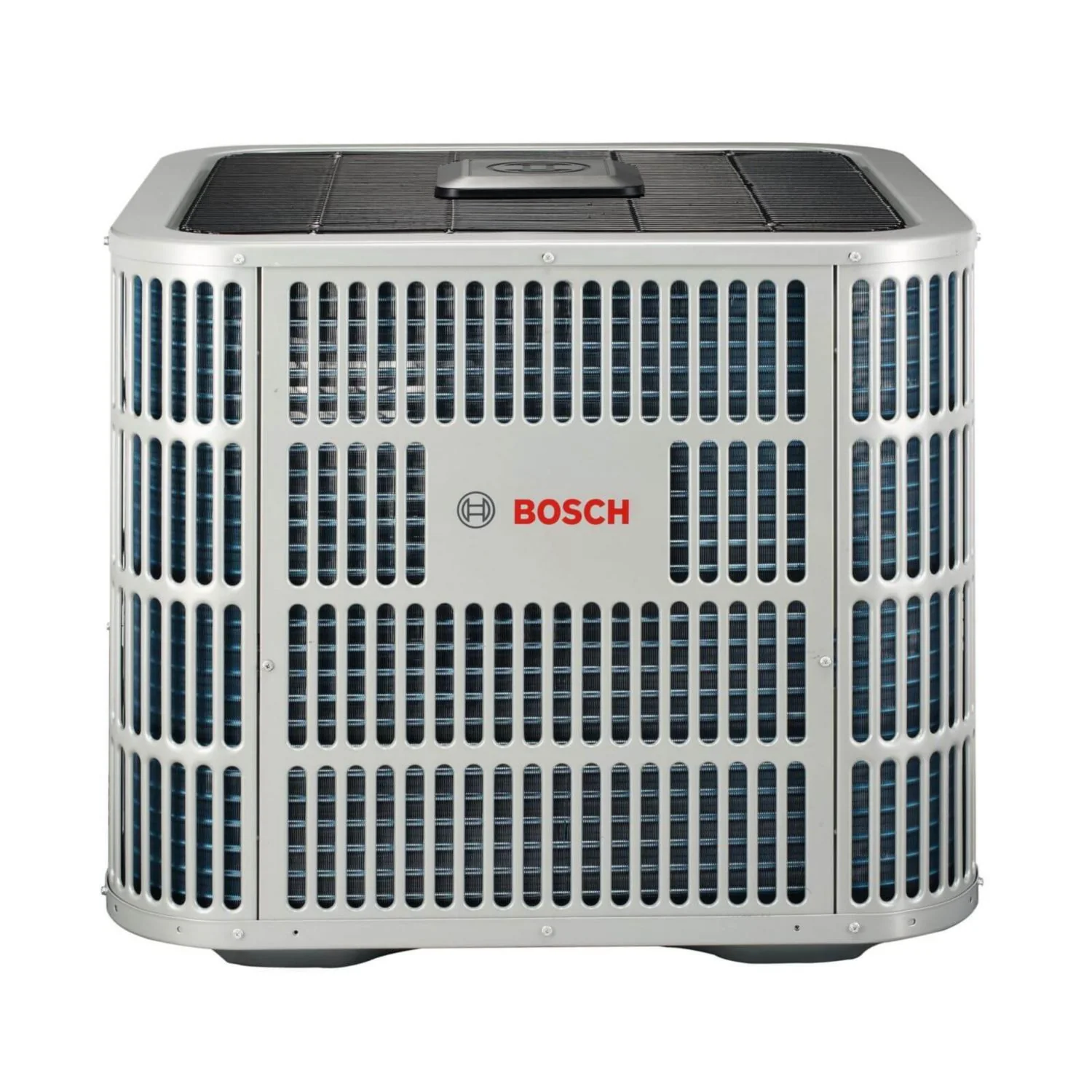

Bosch 8-733-955-690 4 Ton 18.5 SEER2 Heat Pump Condensing Unit, 208-230V/1-Phase/60Hz, R-410A
The Bosch 8-733-955-690 is a 4-ton heat pump condensing unit ā the outdoor half of a split system designed to pair with a matched indoor coil and air handler or furnace. It is rated at 18.5 SEER2 on R-410A refrigerant.
Key specifications include a scroll compressor, 7/8" suction and 3/8" liquid line connections, 208-230V 1-Phase 60Hz power.
Match the unit to an AHRI-certified indoor coil for rated performance. Confirm line-set sizing, electrical service, and refrigerant before ordering.
Specifications
| Nominal Capacity (Tons) | 4, 5 |
| SEER2 | 18.5 |
| EER2 | 11.7 |
| System Type | Heat Pump |
| Refrigerant | R-410A |
| Voltage | 208-230 VAC |
| Phase | Single |
| Compressor | Scroll |
| Suction Line OD | 7/8" |
| Liquid Line OD | 3/8" |
| Condenser FPI | 19 |
| ENERGY STAR | No |
| Cabinet Color | Silver |
Why Bosch
Bosch HVAC equipment. See the model's warranty certificate for coverage terms.
